| Item | Spec. | Remarks |
| Frequency Range | 6200-6500 MHz | Bandwidth Range±10MHz |
| Working Voltage |
28V;30V for 5.2G,5.8G |
24-30V |
| Working current | 8 - 10A | output 100W |
| Analog sweeping speed | 120 KHz | 8μ/s |

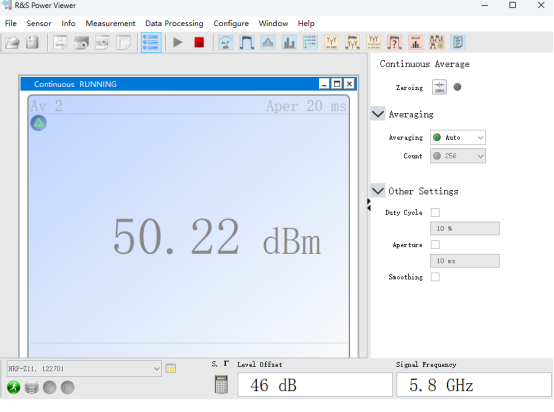

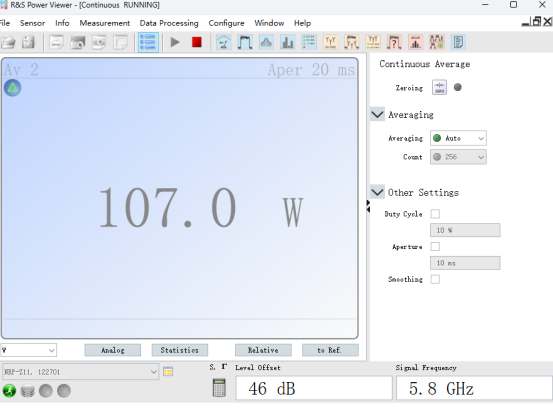

| Output Power (Max) | 50±1 dBm | 100W |
| Gain (Max) | 50±1 dB | |
| Ripple in Band | ≤ 3 dB | Peak |
| Bandwidth adjustment | Yes | By screw |
| Center adjustment | Yes | By screw |
| Enable control | Customize | 24-28V |
| Input power (Max) | ≤ +10dBm | Optional (If signal source from Subscriber) |
| Input Signal Source | Built-in high-speed noise modulation signal source |
Optional (can customize VCO, DDS or SDR) |
| Output VSWR | ≤1.5 | Inside circulator, VSWR protect |

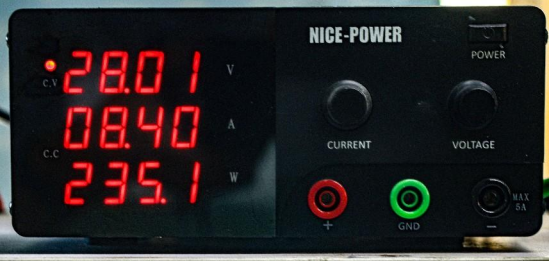

3.Voltage&Current
