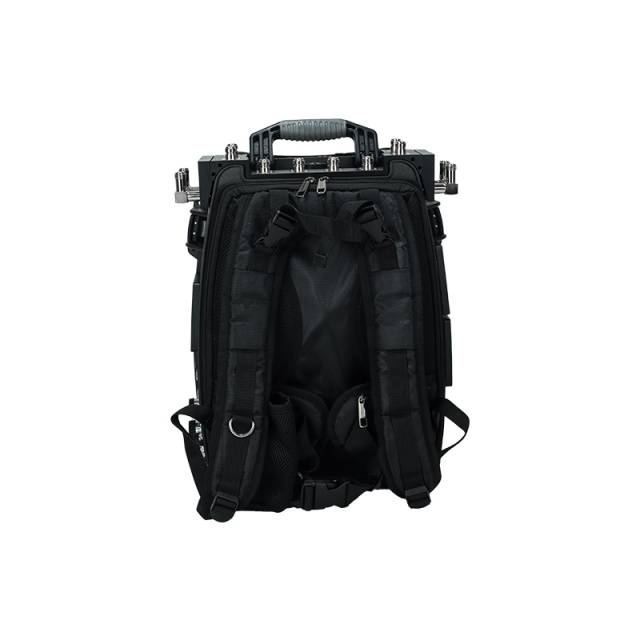

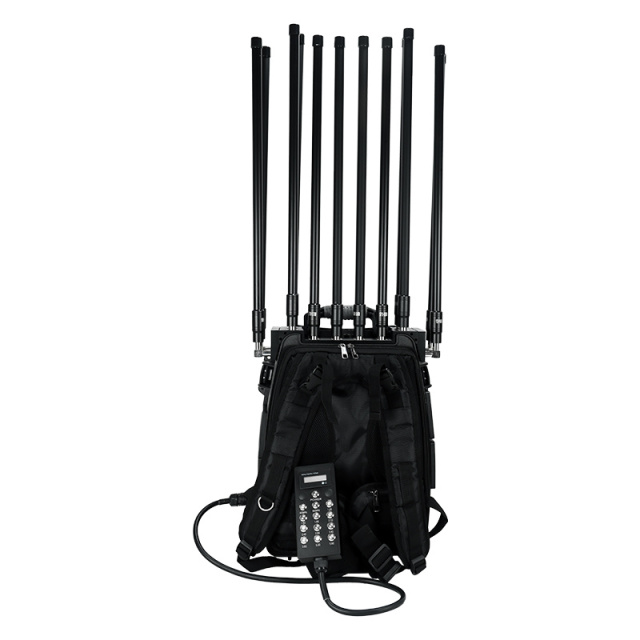

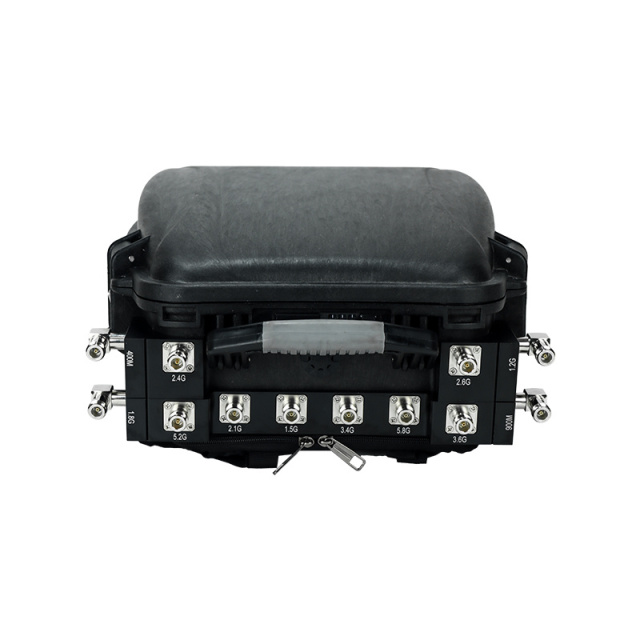

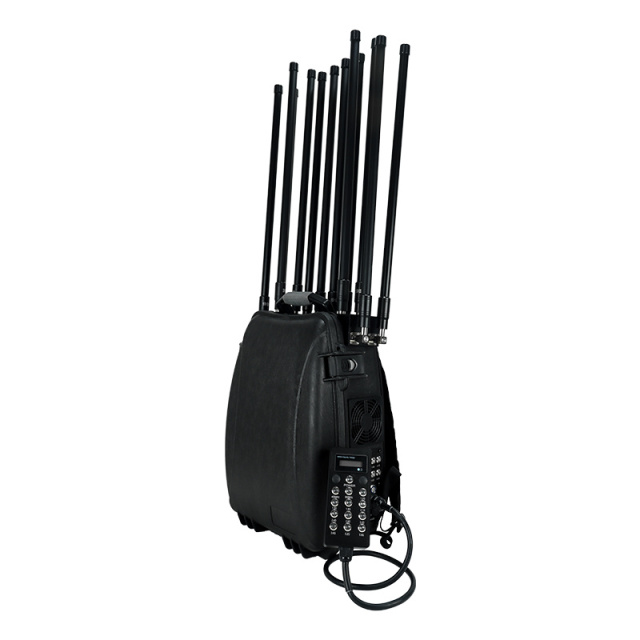

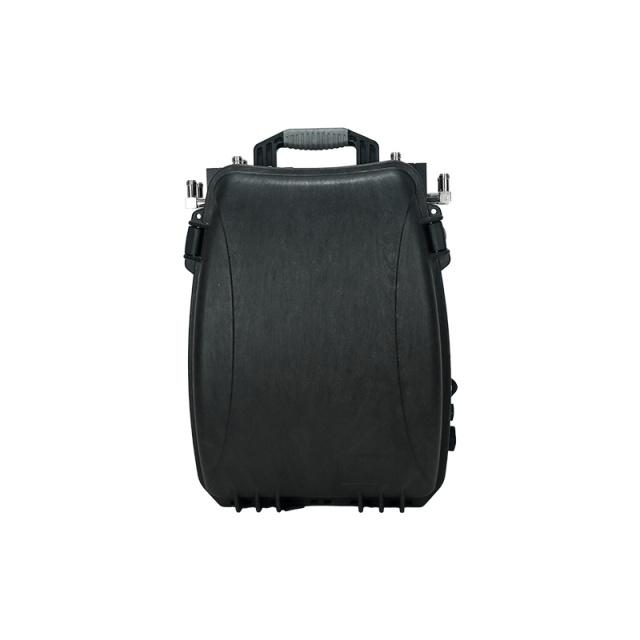

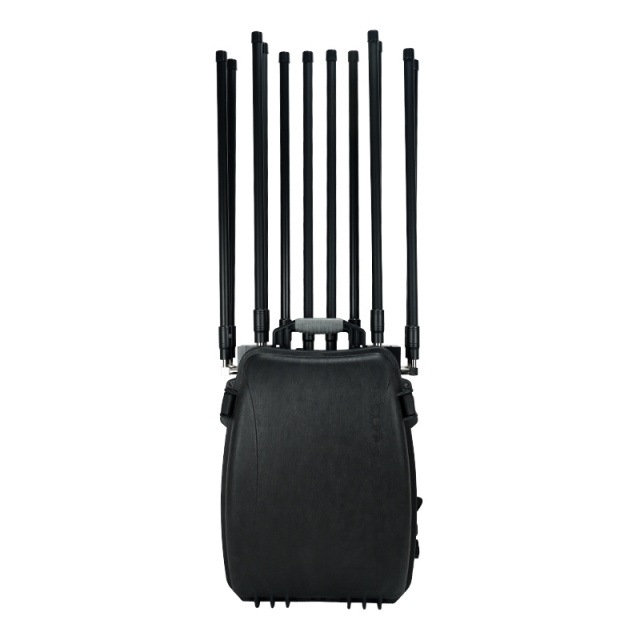

Customize 12 Channel Portable Backpack Jamming Uav 2km 5.8g 2.4G GPS Omnidirectional Antenna Fpv Drone Jammer
Product Description
Backpack drone Jammer is the ultimate anti-drone solution. It is safe, simple to operate and can be used for houses, offices, airports or important places easily. The device uses focused electronic counter measures to block the drone's control, GPS and video signals while minimizing the impact on other local devices.
It comes with Omni directional antennas to disrupt 5 frequencies used by the majority of commercial drones. With a radius range of up to 2km. With multiple power outputs the operator can choose if they want the drone to return to home or land. The device GW-UAV-BP15D does no harm to the drone or its operator.
Most commercial drones use 2.4GHz or 5.8GHz for their control and video transmission frequencies.
The GW-UAV-BP15D disrupts these frequencies meaning that the drone's operator will be unable to see the video coming from the drone. The drone then returns to its home location.
Specifications:
| Channel |
Working frequency |
Output power(±1dBm) |
| 400MHz |
400-500MHz |
47 dBm(50W) |
| 500MHz |
500-600MHz |
47 dBm(50W) |
| 600MHz |
600-700MHz |
47 dBm(50W) |
| 700MHz |
700-840MHz |
47 dBm(50W) |
| 900MHz |
840-960MHz |
47 dBm(50W) |
| 2.4G |
2400-2500MHz |
47 dBm(50W) |
| 5.2G |
5150-5300MHz |
47 dBm(50W) |
| 5.8G |
5725-5850MHz |
47 dBm(50W) |
| GPS L1 |
1570-1620MHz |
47 dBm(50W) |
| GPS L4 |
1400-1500MHz |
47 dBm(50W) |
| GPS L2 L5 |
1170-1280MHz |
47dBm(50W) |
| Total output power: 600W |
| Power consumption : 800W |
| Power supply: AC90-260V, DC24-28V |
| Main engine weight : 16.8Kg |
| Size:350×190×490mm |
| With directional panel antenna 12dBi (Jamming Distance up to 2km) |
| Jammer Module Number : |
12 |
| Cooling System: |
Systematic Smart Cooling System |
| Jamming Source : |
Noise Technology |
| Humidity: 30%-95% |
| Running temperature : -20ºC to +70ºC |
| Inside battery working 1.5h: 25.9V,30Ah |
| Battery charger: 5A(Open the external switch to charge, automatically manage the charging current, full automatically disconnect) |
| External Remote control Panel : shows the battery voltage, can switch on/off each band. |
Applications:Sensitive AreasPrisonsOil RefineriesProtected AreasFunction:Effective interference with UAV Remote-Control Signal 2400MHz, GPSL1 signal, Transmission Signal 5800MHz,Features:
1. High integration & Stable operation, Noise technology.
2. Highly effective power & long jamming distance up to 2KM.
3. Separate control of each module, convenient operation.
4. High quality tubular radiator, effective in radiating heat.
5. Import components, VSWR protection, Overheat protection6. No interference to nearby frequency bandsFrequency Testing Again Before Shippment:
