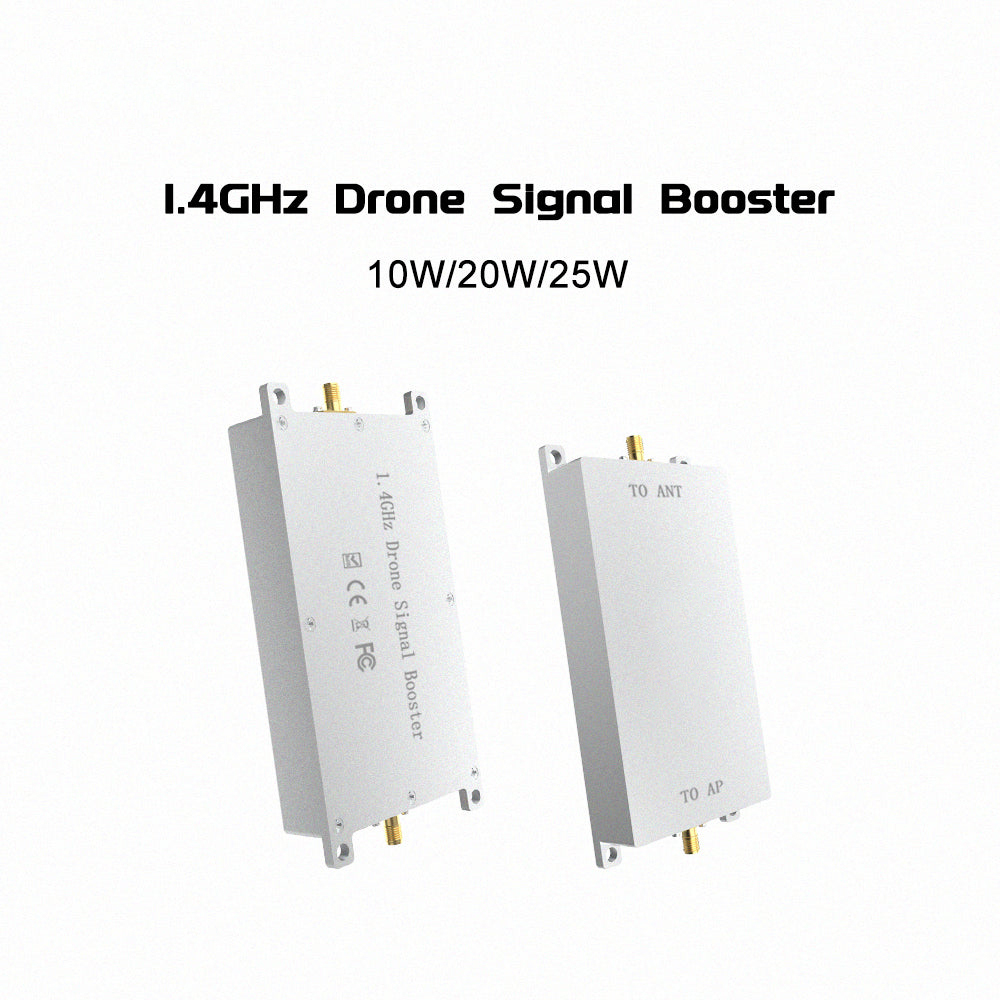

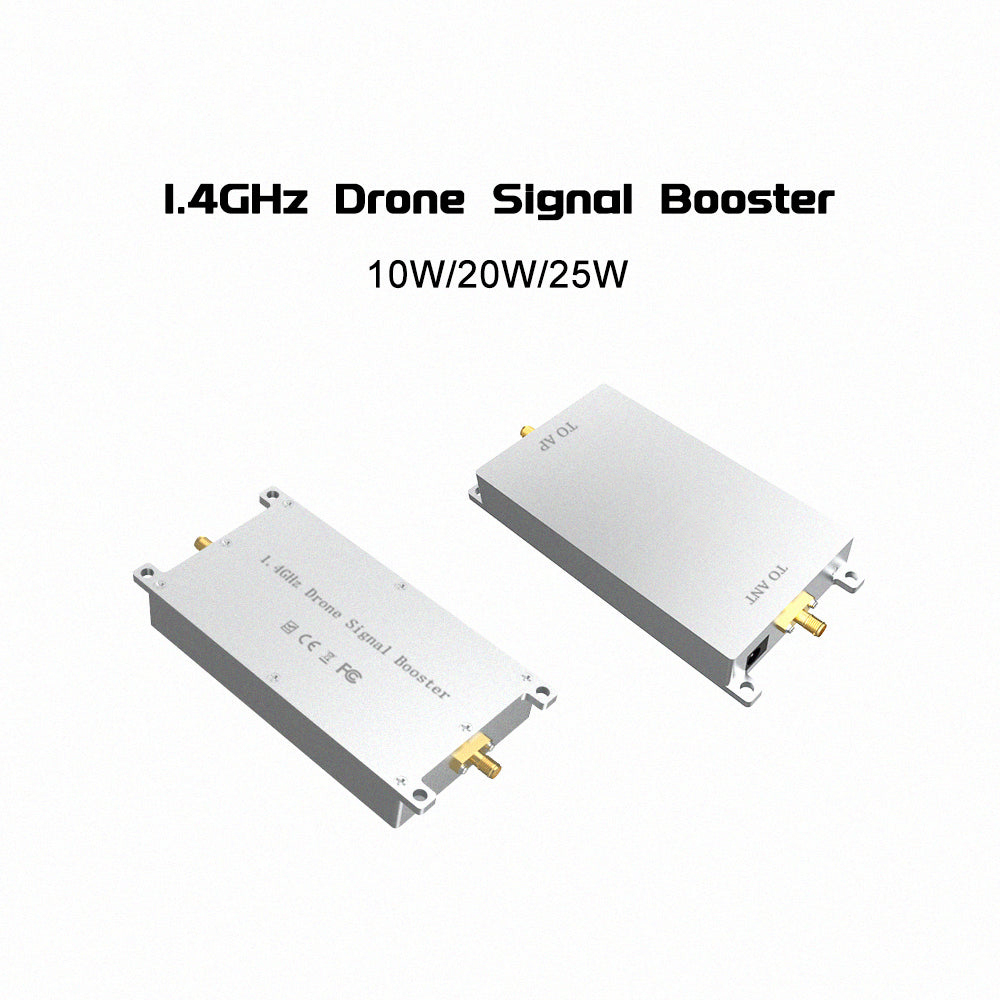

1.4GHz 20W Signal Booster
Applications
Smart Home Systems Signal Extender
Wireless Cameras Signal Extender
Drone Signal Extender
Features
60X the power, improving the link quality and coverage of certified devices
2.5dB ultra-low noise
Wide 8V to 18V operating input range
Simply plug and play, no software is required
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
1360-1440MHz |
|
2 |
Operating Voltage |
12-20V |
|
3 |
Receiving Gain |
18dB±1 |
|
4 |
Transmission Gain: |
18dB±1 |
|
5 |
Max Output Power(P1dB) |
|
|
6 |
Input Trigger Power |
Min:3dBm Max:20dBm |
|
7 |
EVM |
3%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
|
8 |
Noise Figure |
＜2.5dB |
|
9 |
Current Supply |
2.3A@Pout 37dBm 12V |
|
10 |
TX/RX Switch Time Delay |
＜1 us |
|
11 |

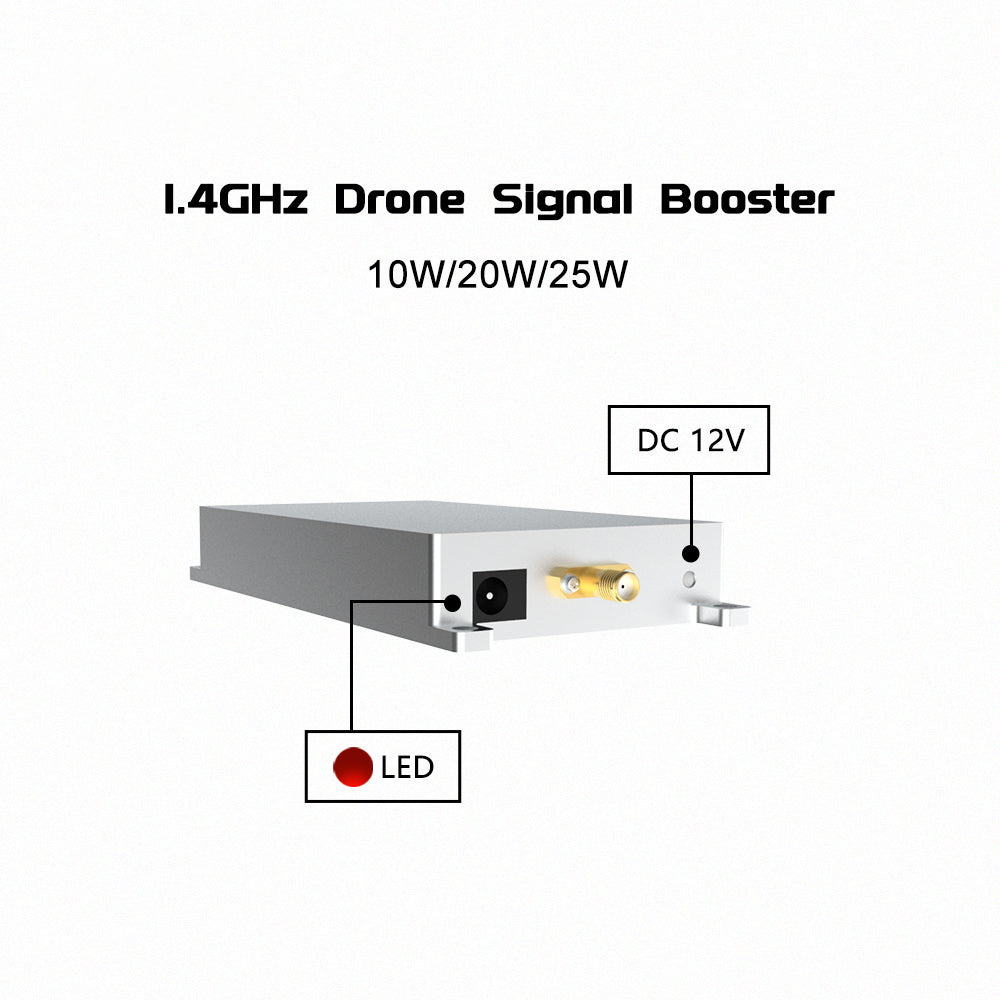

LED Indicator |
Transmitter: Green; Receiver: Red |
|
12 |
Operating Temperature |
-30℃～+70℃ |
|
13 |
Storage Temperature |
-40℃～+150℃ |
|
14 |
Operating Humidity |
Up to 95% rel. humidity |
|
15 |

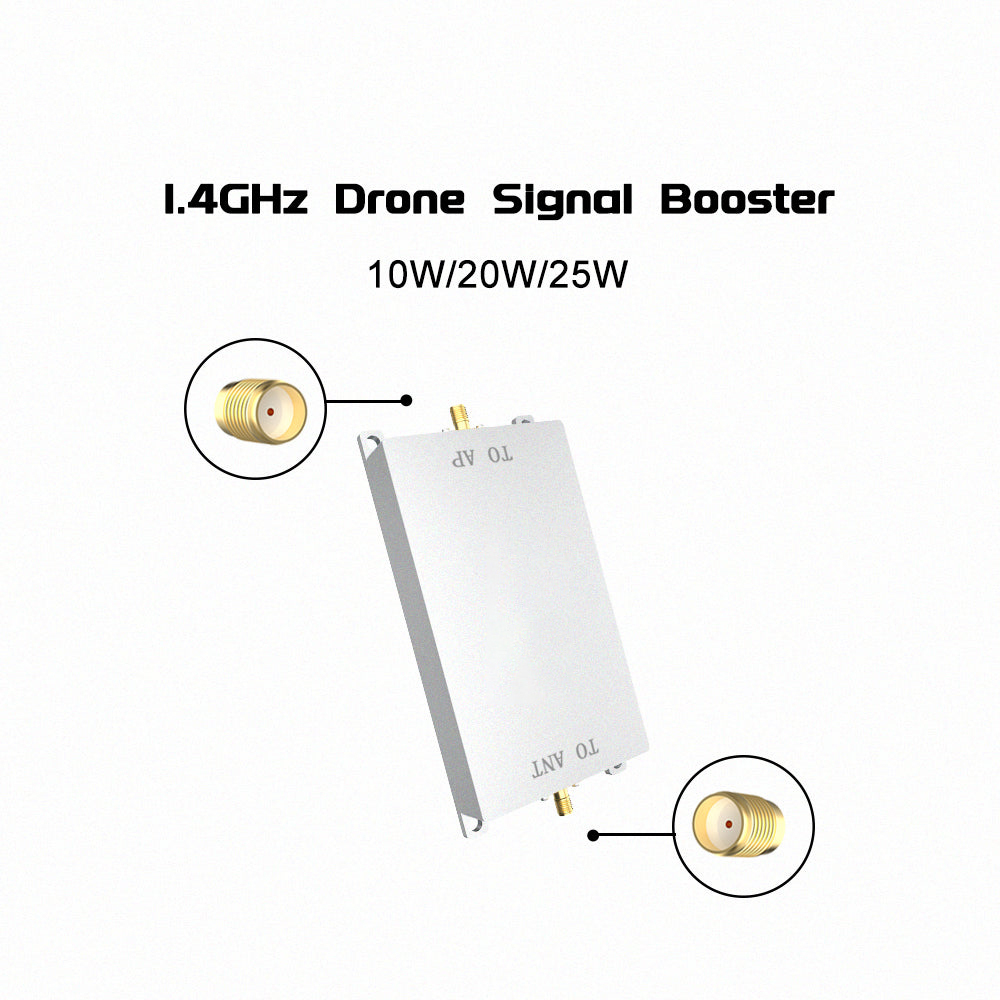

RF Connector |
Input: SMA-K; Output: SMA-K |
|
16 |
Power Socket |
5.5*2.1mm |
|
17 |

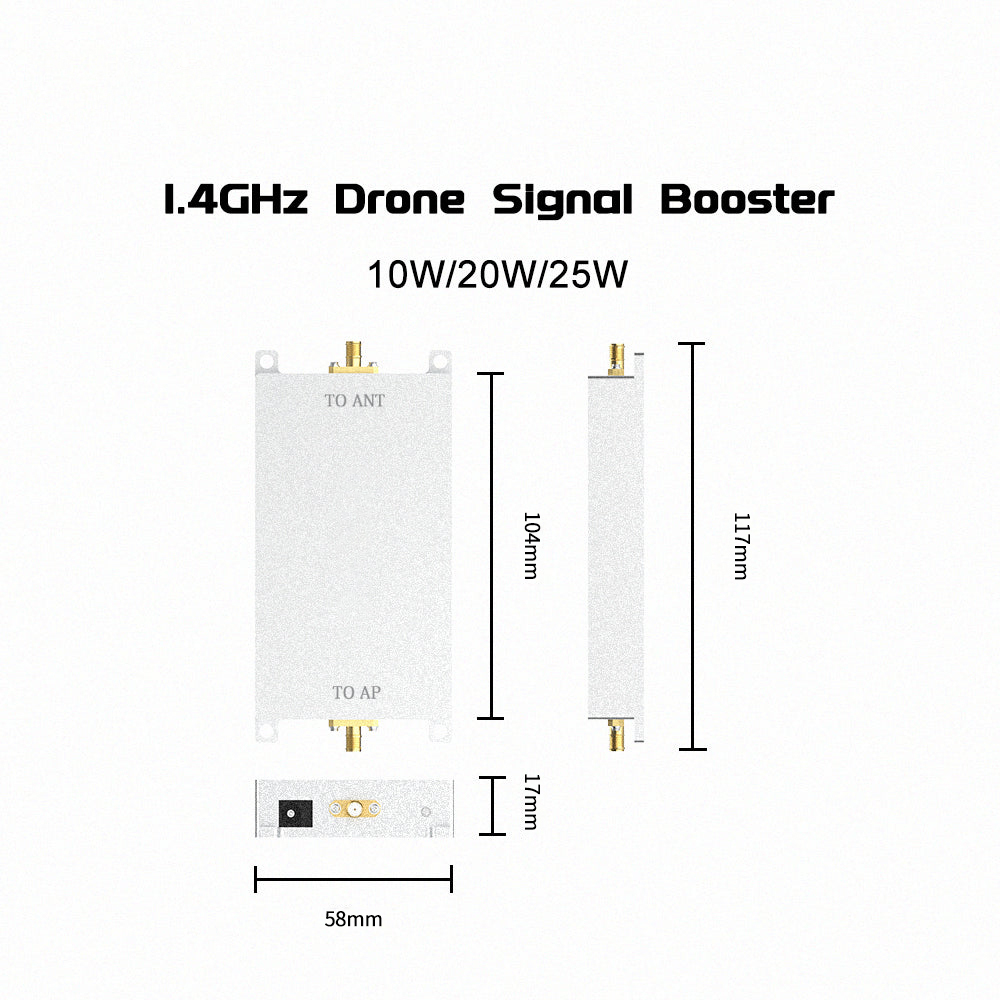

Shell Size |
104*60*17(mm) |
|
18 |
Shell Material |
Aluminum |
|
19 |
Net Weight |
0.27Kg |
