Applications:

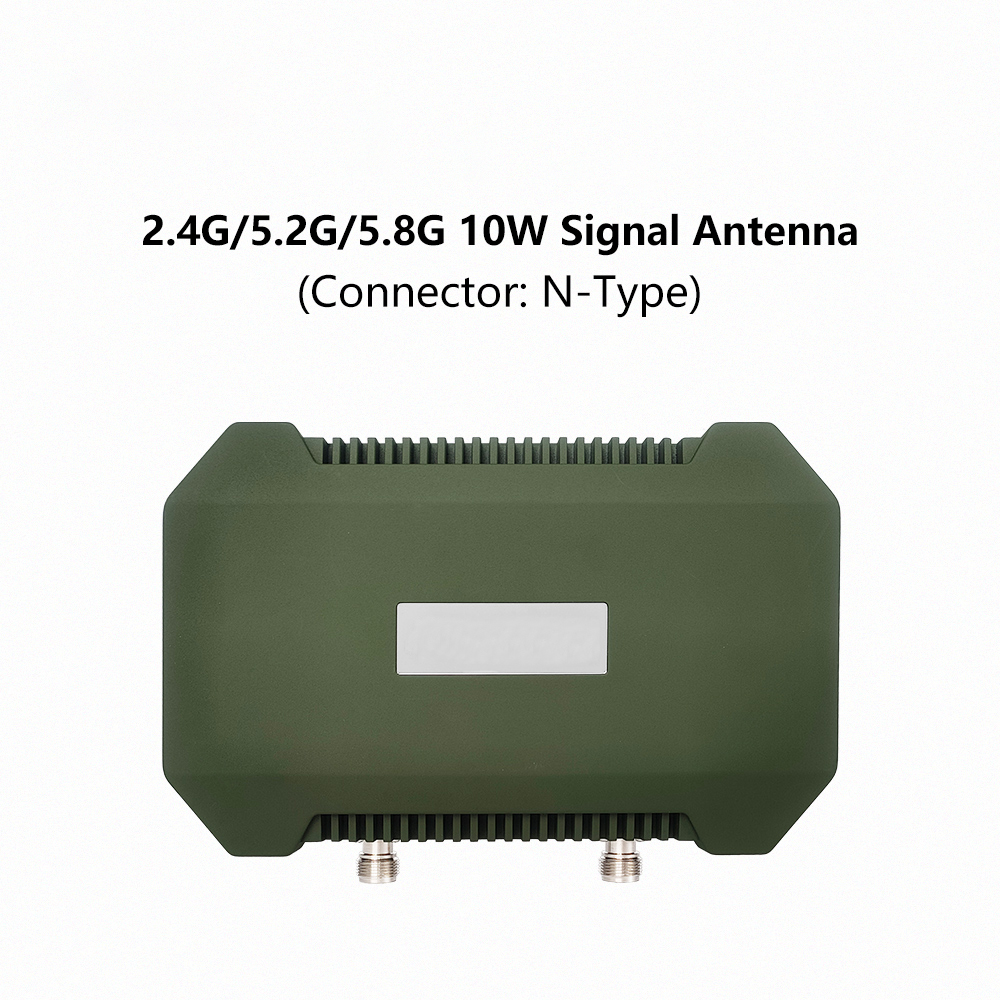

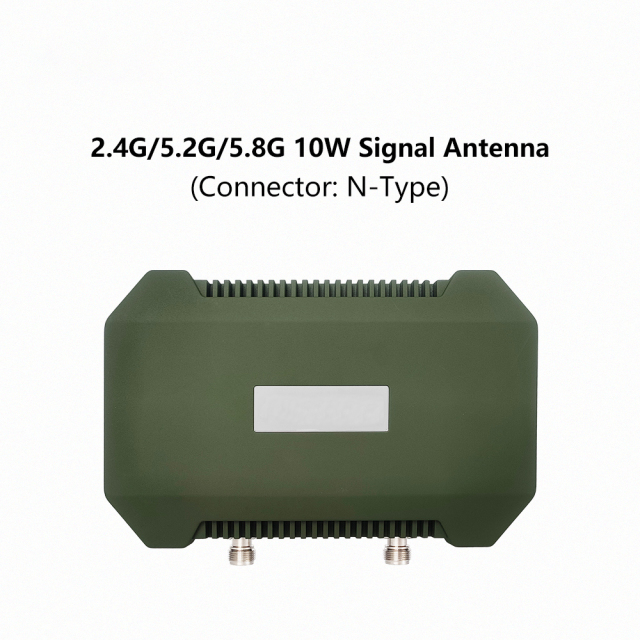

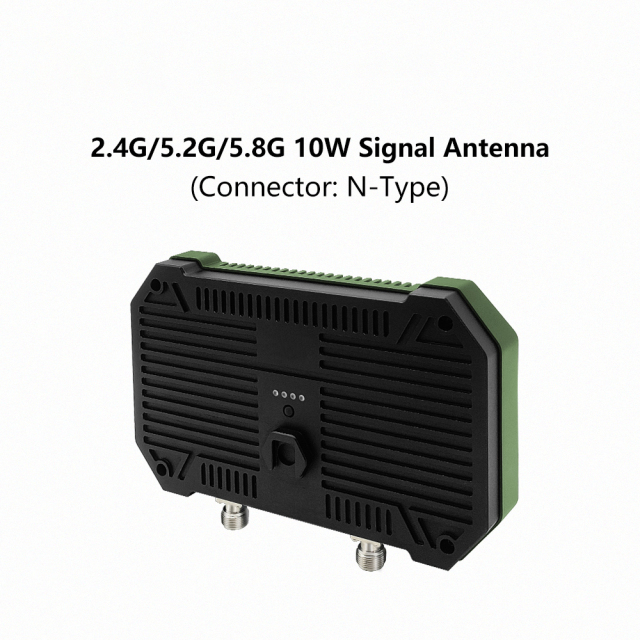

FPV Signal Booster
Drone Signal Extender
Features:
Maximum output power 10W
Ultra-large capacity battery, 8000mAh
2.4G/5.2G/5.8G Tri-band dual-port working at the same time, free switching
All-aluminum shell, better cooling effect
|
Number |
Items |
Specifications |
|
|
1 |
Frequency Range |
2400-2500MHz |
5150-5850MHz |
|
2 |
Max Output Power |
40dBm(10W) |
40dBm(10W) |
|
3 |
Antenna Gain |
15dB±1 |
18dB±1 |
|
4 |
Battery Capacity |
8000mAh |
|
|
5 |
Receiving Gain |
16dB±1 |
16dB±1 |
|
6 |
Transmission Gain: |
18dB±1 |
18dB±1 |
|
7 |
Input Trigger Power |
Min:3dBm Max:23dBm |
Min:3dBm Max:23dBm |
|
8 |
EVM |
3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz |
|
9 |
Noise Figure |
<2.5dB |
<2.5dB |
|
10 |
Current Supply |
2.2A@Pout 40dBm 12V |
2.2A@Pout 40dBm 12V |
|
11 |
TX/RX Switch Time Delay |
<1 us |
|
|
12 |
Charging Voltage |
5V/2A |
|
|
13 |
LED Indicator |
4 Blue LED |
|
|
14 |
Charging Port |
Type-c |
|
|
15 |
RF Connector |
N-Female |
|
|
16 |
Operating Temperature |
-30℃~+70℃ |
|
|
17 |
Storage Temperature |
-40℃~+150℃ |
|
|
18 |
Operating Humidity |
Up to 95% rel. humidity |
|
|
19 |
Shell Size |
230*146*39(mm) |
|
|
20 |
Shell Material |
Aluminum |
|
