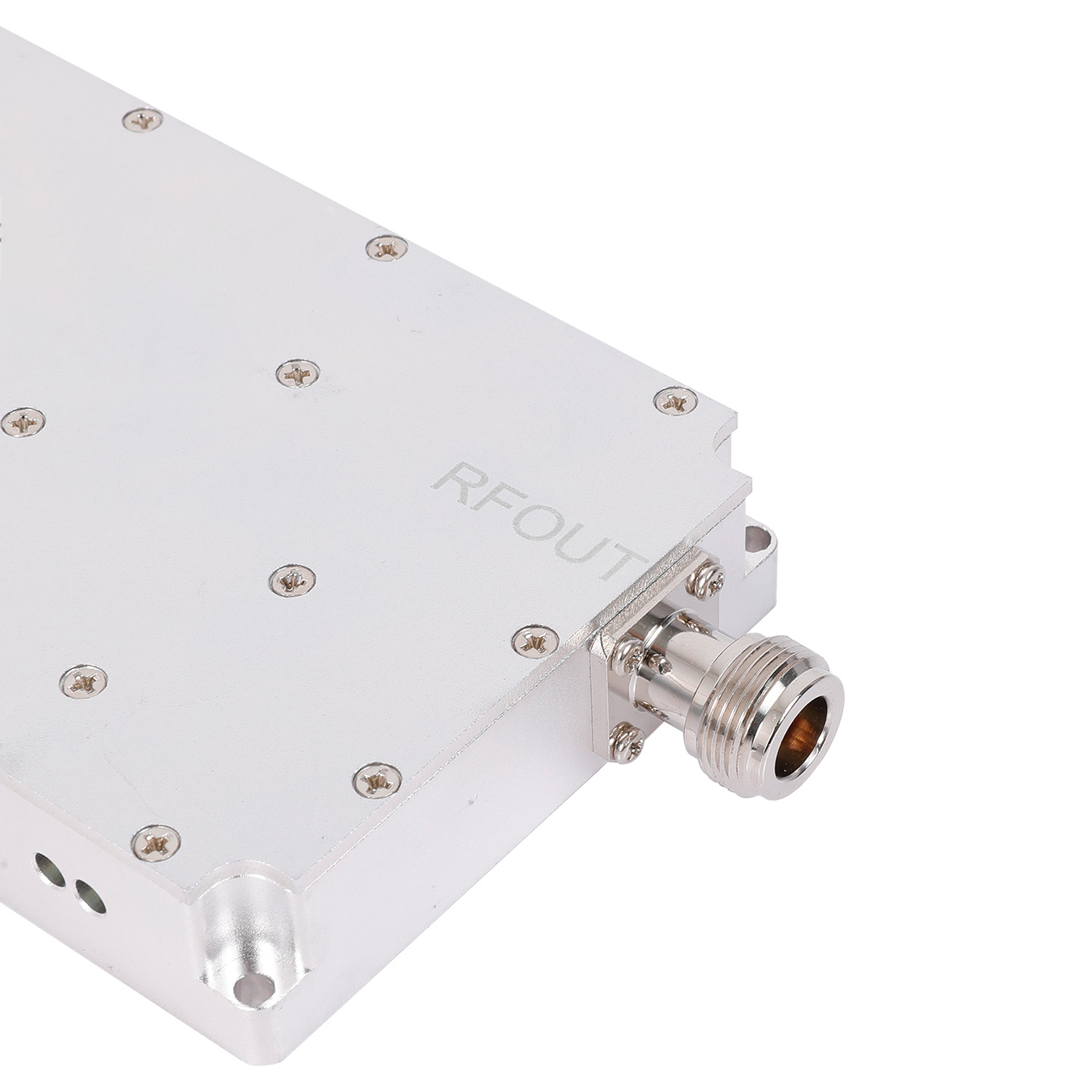

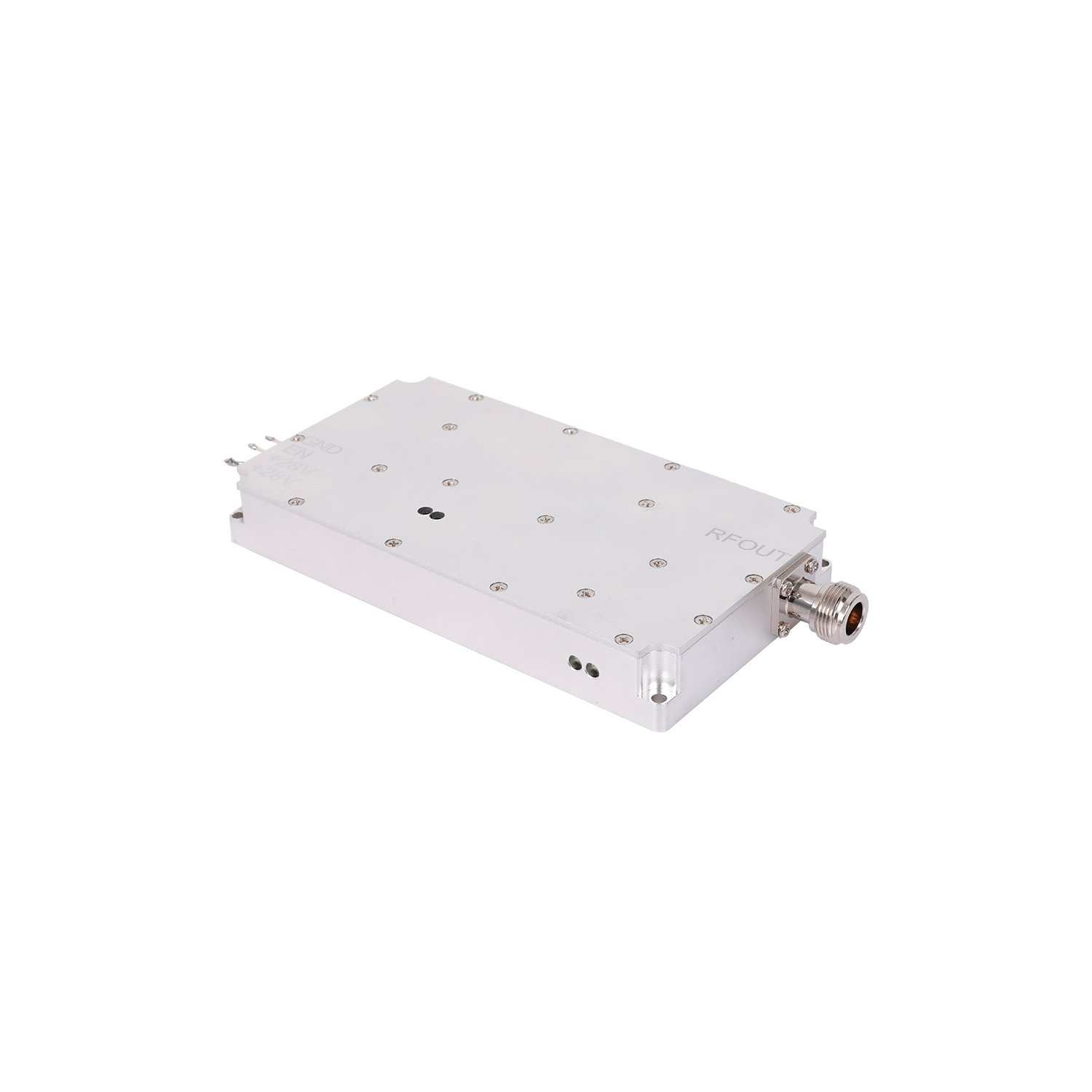

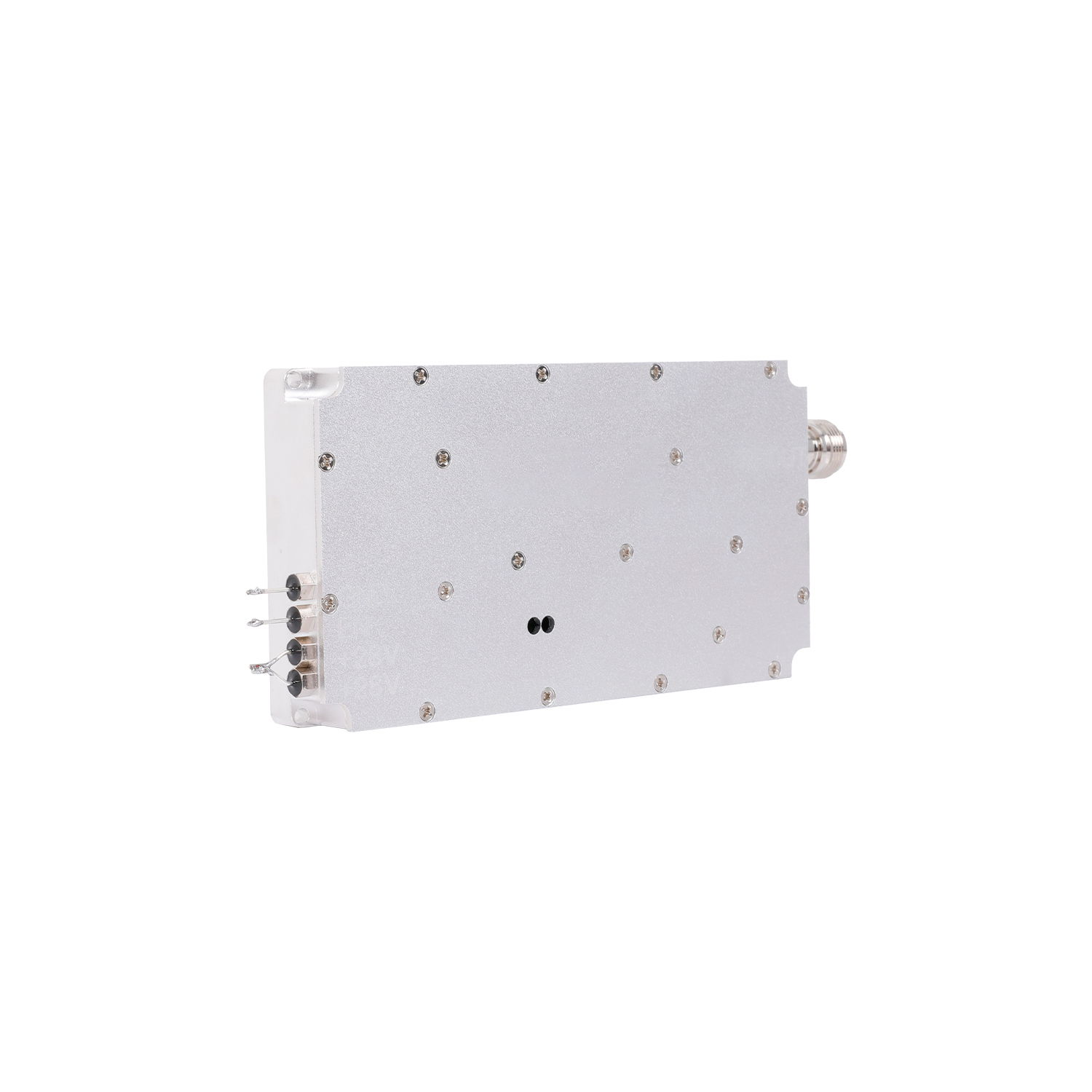

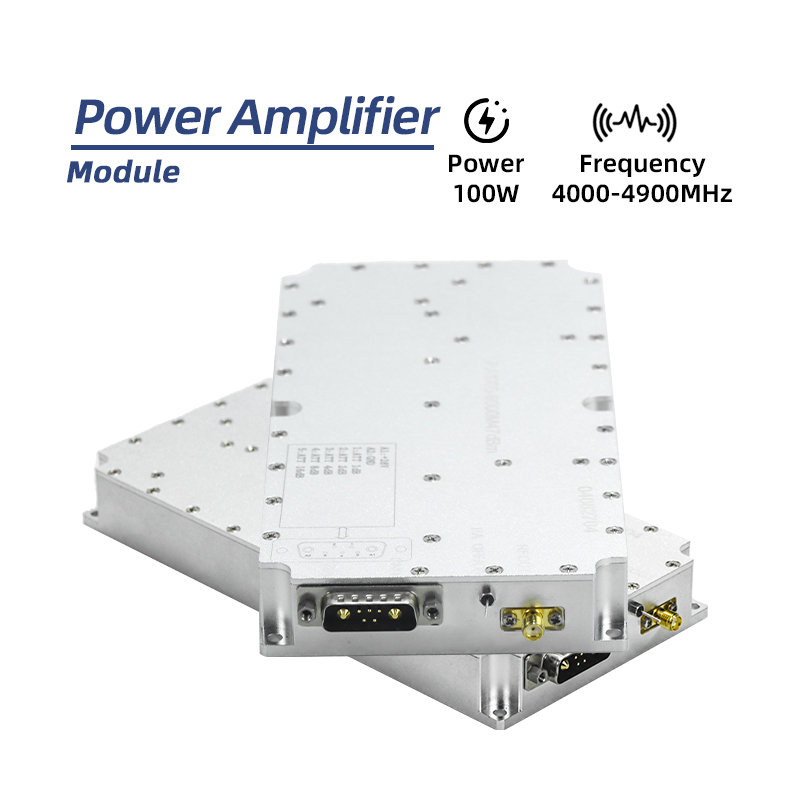

The AMP40004900-100W is designed for general purpose. Operating frequency range is from4000~6000MHz. Gallium Nitride on SiC Technology is used and attached on a copper sub carrier.Improved thermal handling by patented technology.
Description
The AMF 4000-4900MHz 100W is designed for general purpose. Operating frequency range is from 4000-4900MHz. Gallium Nitride on SiC Technology is used and attached on a copper sub carrier.
Improved thermal handling by patented technology.
|
PARAMETER |
UNIT |
MIN |
TYP |
MAX |
SYMBOL |
|
Operating Frequency |
MHz |
4000 |
- |
4900 |
FO |
|
Peak Output Power @CW Signal |
W |
- |
100 |
- |
PSAT |
|
Input Power |
dBm |
- |
-2±3 |
- |
PIN |
|
Maximum Input Power @Without Damage |
dBm |
|
- |
5 |
PIN, MAX |
|
Power Gain @Input Power 0dBm |
dB |
- |
50±3 |
- |
GP |
|
Gain Flatness @Input Power 0dBm |
dB |
- |
- |
±3 |
∆GP |
|
Efficiency |
% |
- |
30 |
- |
EFF |
|
Harmonics 1 to N @Output Power 100W |
dBc |
10 |
- |
- |
HN |
|
Spurious Level |
dBc |
60 |
- |
- |
Spur |
|
Input VSWR |
dB |
- |
- |
2:1 |
VSWR |
|
Output VSWR |
dB |
- |
- |
2:1 |
VSWR |
|
Operating Voltage |
V |
- |
28-30 |
- |
VDC |
|
Current Consumption @Output Power 100W |
A |
- |
10 |
- |
IDC |
