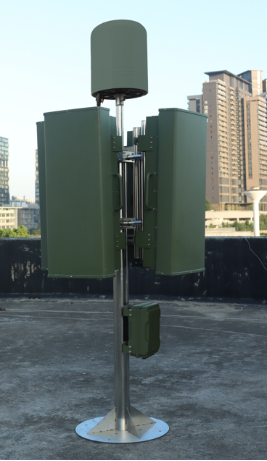

The X1D-4JA is a fixed-position system integrating drone detection, positional and jamming, composed of the drone detection device linked with a four-sided drone jamming array. It features full-band detection within a radius of 1–10 km, capable of accurately identifying drone signals within the detection range. The linked four-sided jamming array enables omnidirectional jamming within a radius of 1–5 km, covering 300MHz–6200MHz. It can operate in manual or automatic modes to jam and neutralize drone signals within the detection range.
The X1D-4JA is a fixed-position system integrating drone detection, positional and jamming, composed of the drone detection device linked with a four-sided drone jamming array. It features full-band detection within a radius of 1–10 km, capable of accurately identifying drone signals within the detection range. The linked four-sided jamming array enables omnidirectional jamming within a radius of 1–5 km, covering 300MHz–6200MHz. It can operate in manual or automatic modes to jam and neutralize drone signals within the detection range.
|
Number |
Project |
Parameter |
Remarks |
|
1 |
Detection frequency band |
100MHz～6GHz |
|
|
2 |
Detection distance |
2～10km |
|
|
3 |
Number of detection targets |
≥20 sorties |
meanwhile |
|
4 |
Detection mode |
360°Passive detection |
|
|
5 |
Direction finding frequency band |
2GHz～6GHz |
X1D |
|
6 |
Direction finding distance |
≥3km |
|
|
7 |
Number of direction finding targets |
Not less than 3 sorties |
meanwhile |
|
8 |
Directional accuracy |
～10° |
|
|
9 |
DF refresh rate |
10-30 times/minute |
|
|
10 |
positioning accuracy |
≤20m |
|
|
11 |
Number of positioning trajectories |
≥5 sorties |
meanwhile |
|
12 |
Scan spectrum range |
100MHz～6GHz |
|
|
13 |
Detecting and identifying drone models |
Common brands of drones such as DJI, Autel, Fimi, Dahua, and Yuneec, as well as most domestically produced models such as walkthrough and WiFi machines on the market |
|
No. |
Parameter |
Specifications |
Remarks |
|
|
1 |
Jamming Range |
1～5Km (Depending on conditions) |
|
|
|
2 |
Control Method |
Connect to a computer and access the web interface for control |
|
|
|
3 |
Connection Method |
DC power cable connection to control chassis or direct connection to remote controller |
|
|
|
4 |
Power Supply Method |
Powered via AC power supply using power adapter cables, 220V AC |
|
|
|
No. |
Parameter |
Specifications |
Remarks |
|
|
5 |
Jamming Frequency Range & Power |
Frequency Range |
Power |
|
|
420MHz～480MHz 650MHz～850MHz 850MHz～950MHz 1100MHz～1300MHz 1300MHz～1500MHz 2400MHz～2500MHz 1550MHz～1620MHz 5100MHz～5300MHz 5720MHz～5860MHz |
50W 50W 50W 50W 50W 100W 50W 50W 100W |
|||
Capable of full-band detection (300MHz–6200MHz) within a radius of 1–10 km. The device incorporates a vast database of drone model signatures, enabling accurate identification of mainstream commercial drone brands (such as DJI, Autel, FIMI, etc.), FPV drones, and DIY drone signals, while effectively reducing false alarm rates.
Twelve frequency band jamming modules are embedded within the jamming array, featuring integrated power supply and heat dissipation. This design ensures powerful jamming capability while reducing device size, operational complexity, and heat generation, enhancing product independence and ease of maintenance and use.
The four-sided jamming array utilizes high-gain directional antennas, effectively enhancing signal transmission strength and providing the hardware foundation for comprehensive four-sided coverage jamming.
Composed of a four-sided jamming array forming a comprehensive jamming unit. Through multi-sided coordination, it ensures deadlock-free electromagnetic coverage within a radius of 1–5 km airspace, even in complex electromagnetic environments and terrain conditions.
Provides comprehensive Jamming coverage for frequency bands commonly used by mainstream commercial models and FPV drones, ensuring absolute low-altitude security within the effective range.
Capable of automated Jamming. Upon detecting drone activity, the jamming array automatically activates to expel or force-land the drone.

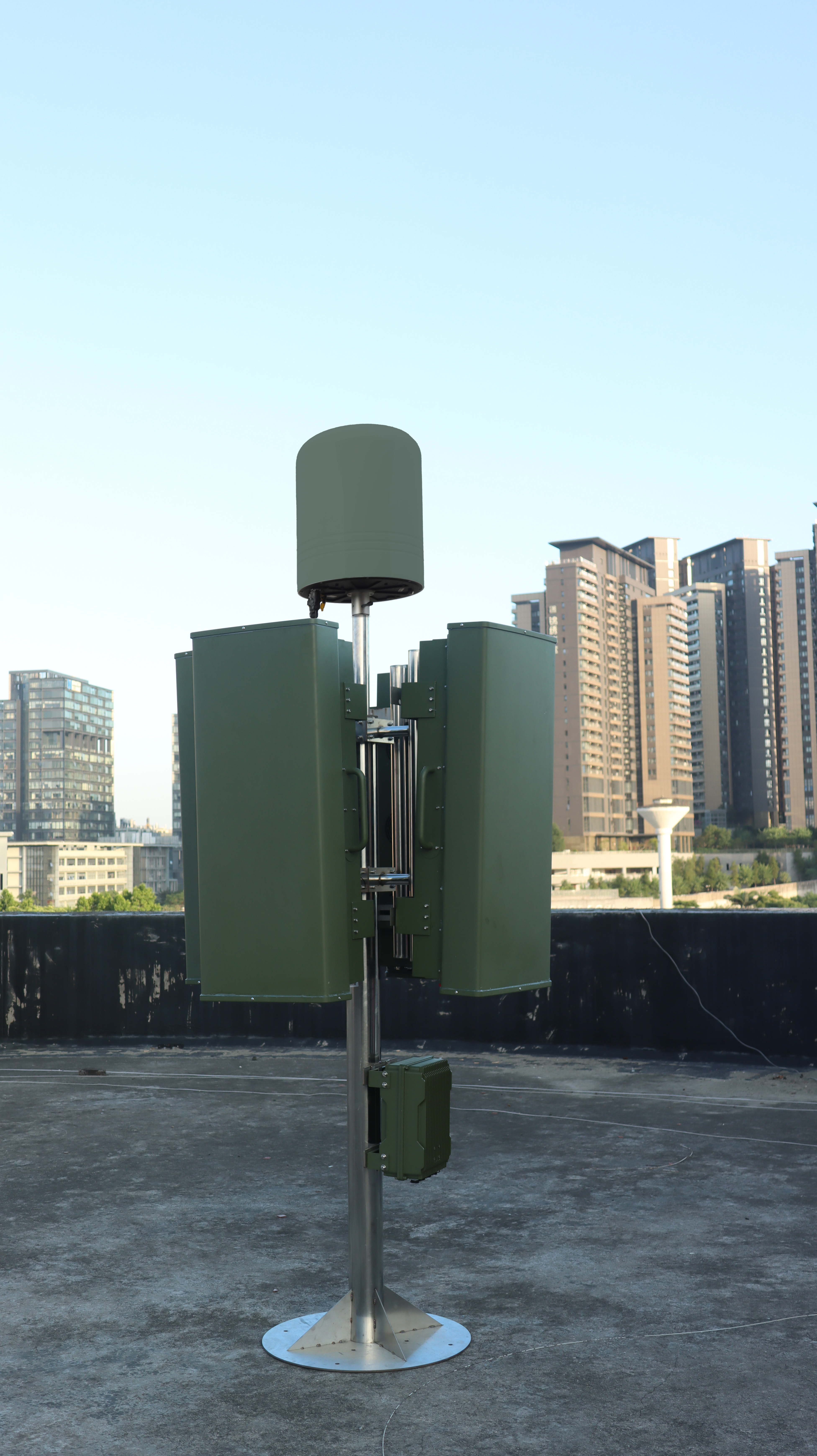

The device is designed for fixed installation with a sturdy structure, suitable for long-term or temporary continuous protection scenarios such as core areas, important event venues, and critical infrastructure.
