1. Introduction

Name: Drone Signal 3km Detection Range for UAV Signal RID Detection and Position
Brand: MY SHOP
SKU: GW-RID
Availability: InStock
Rating: 5 (1 reviews)

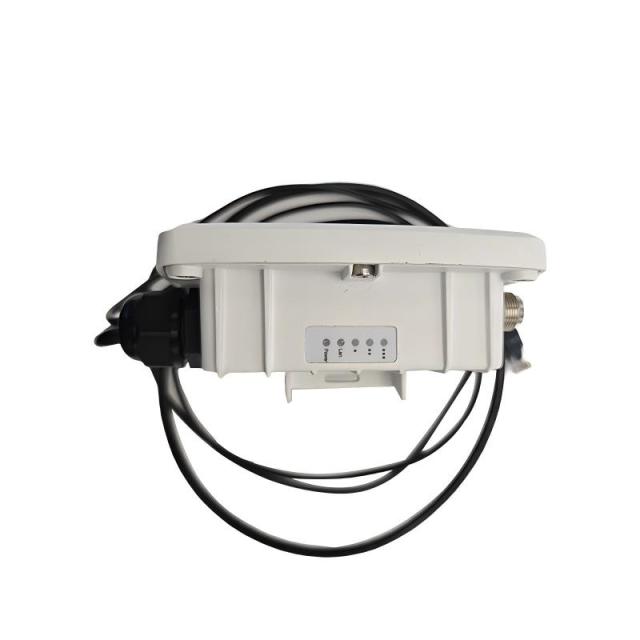

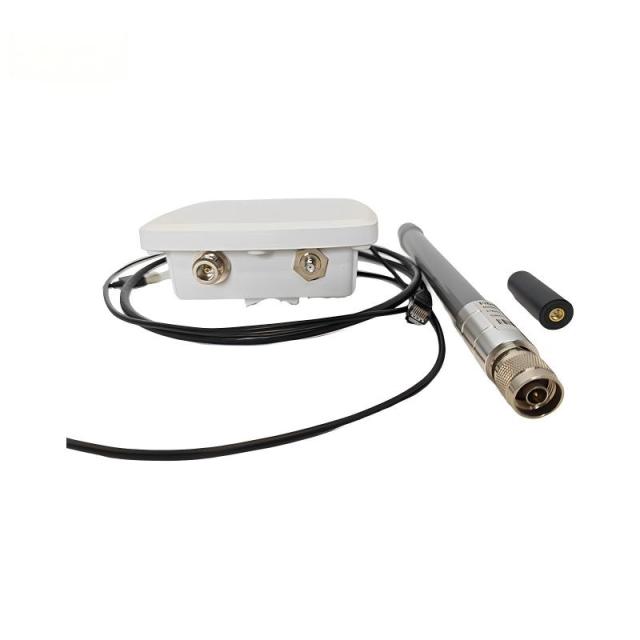

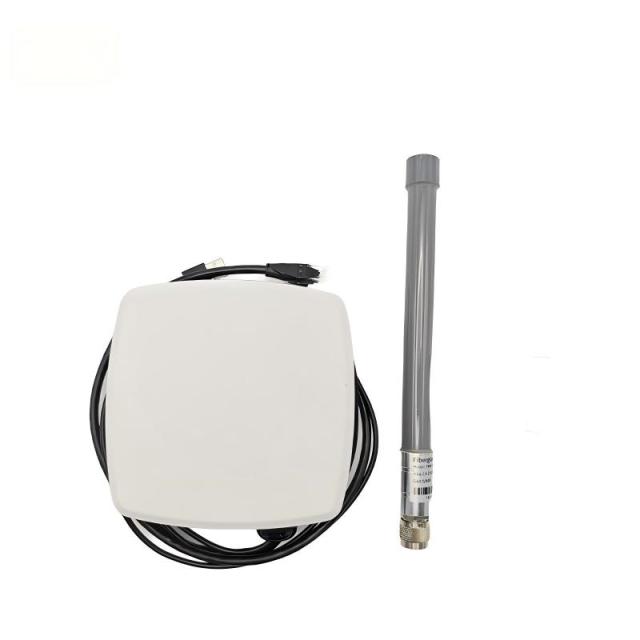

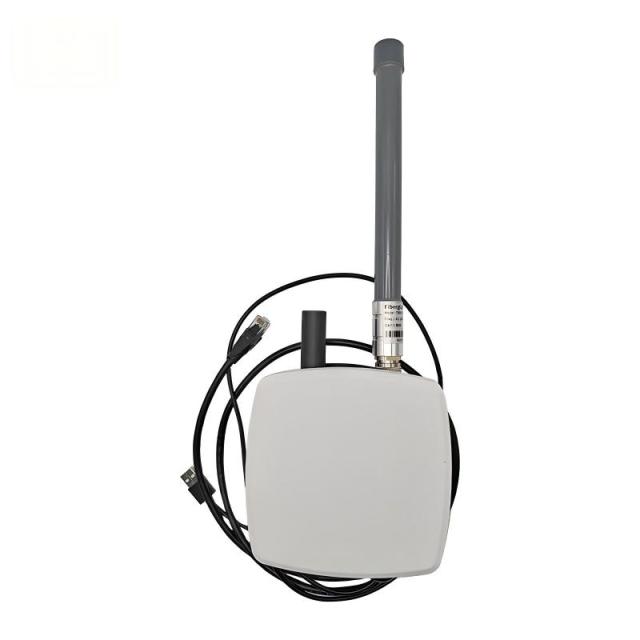

This drone Remote-ID message detection device is designed to receive and parse message signals transmitted remotely by drones. It utilizes a high-gain fiberglass antenna for detection and parsing, and features a built-in GNSS antenna to determine the device’s real-time location. The device is housed in a rugged, all-metal enclosure with external ports for power and network cables, and supports a custom POE-powered version for easy system integration.

2. Features

Precise Identification: Precise detection of drones allows for the identification of parameters such as the drone’s unique serial number (UASID), model, altitude, and speed, facilitating the assessment of flight compliance.
Target Localization: Enables real-time, precise tracking of drone locations and flight paths
Operator Localization:It enables precise tracking of the pilot's location, facilitating law enforcement action
Stable and reliable: Designed for all-weather outdoor installation, it can operate continuously 24/7;

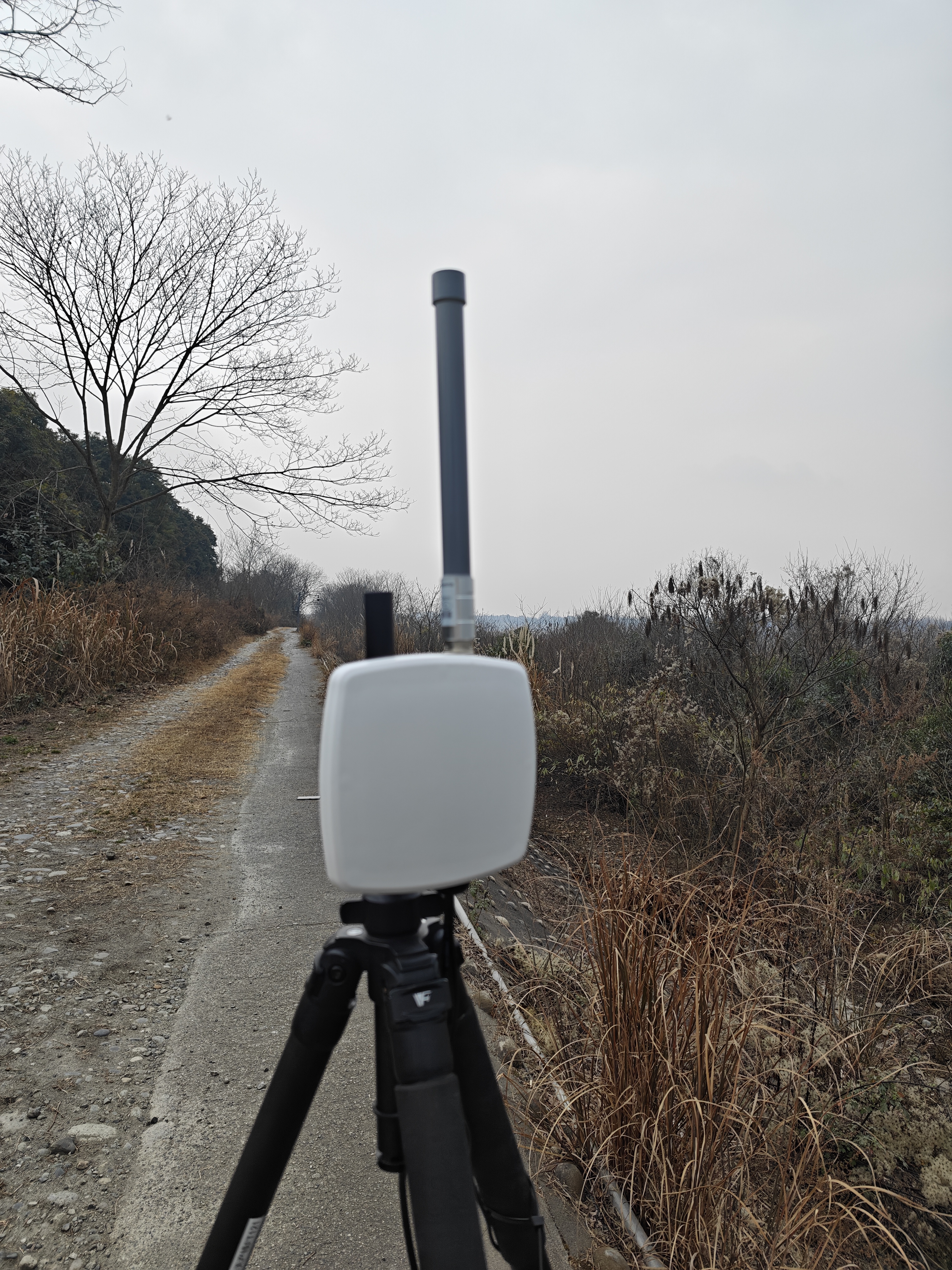

Integration capability: Compact and lightweight, it can be quickly mounted on a mast and features standard network interfaces for easy integration into third-party systems.

3. Parameter

Operating Mode	Passive Detection
Compatible Models	Drones equipped with RemoteID transmission
Detection Range	≥3 km
Wi-Fi Reception	On-board support for Wi-Fi 6
Ethernet	100 Mbps Ethernet, supporting data transfer rates of 10/100 Mbps
Equipment Dimensions	145 × 145 × 63 mm (excluding antenna)
Supply voltage	5 V DC
Operating temperature	-20~50℃
Protection Rating	IP68
