1、Overview

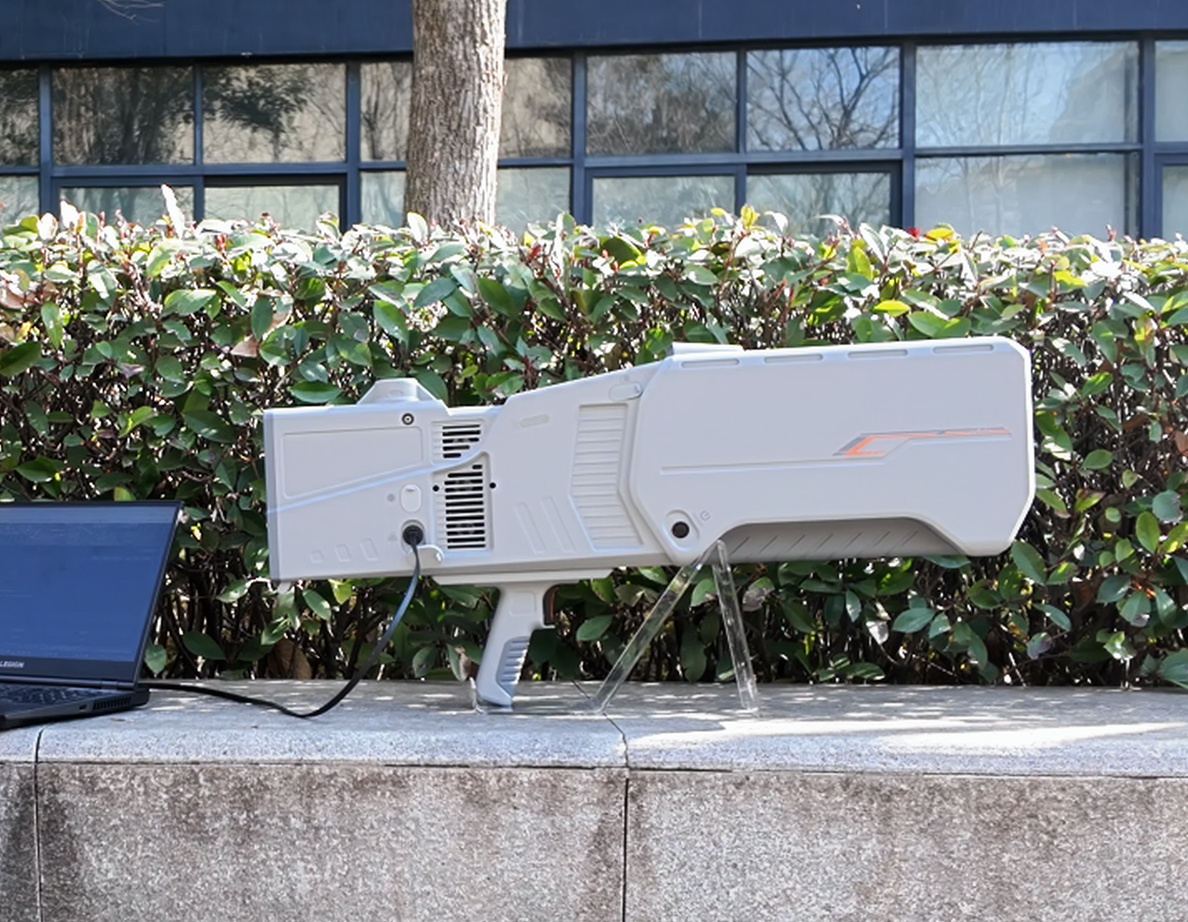

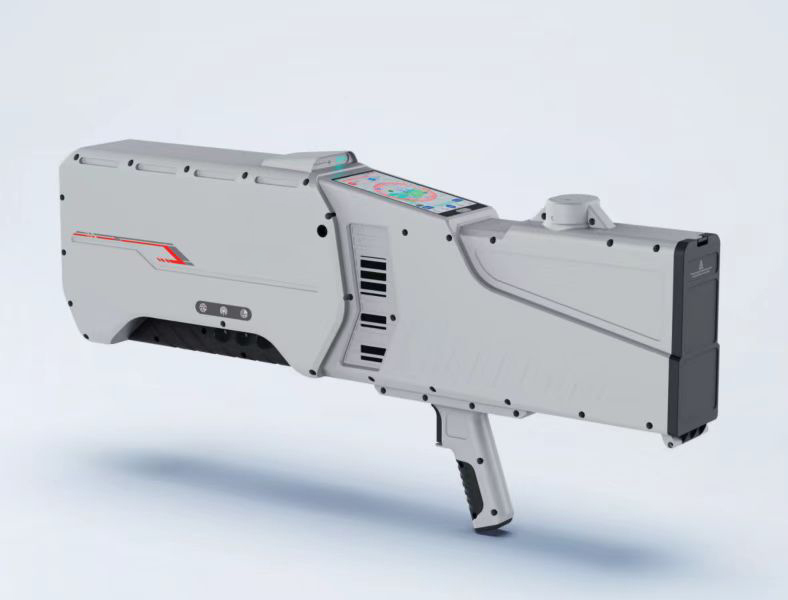

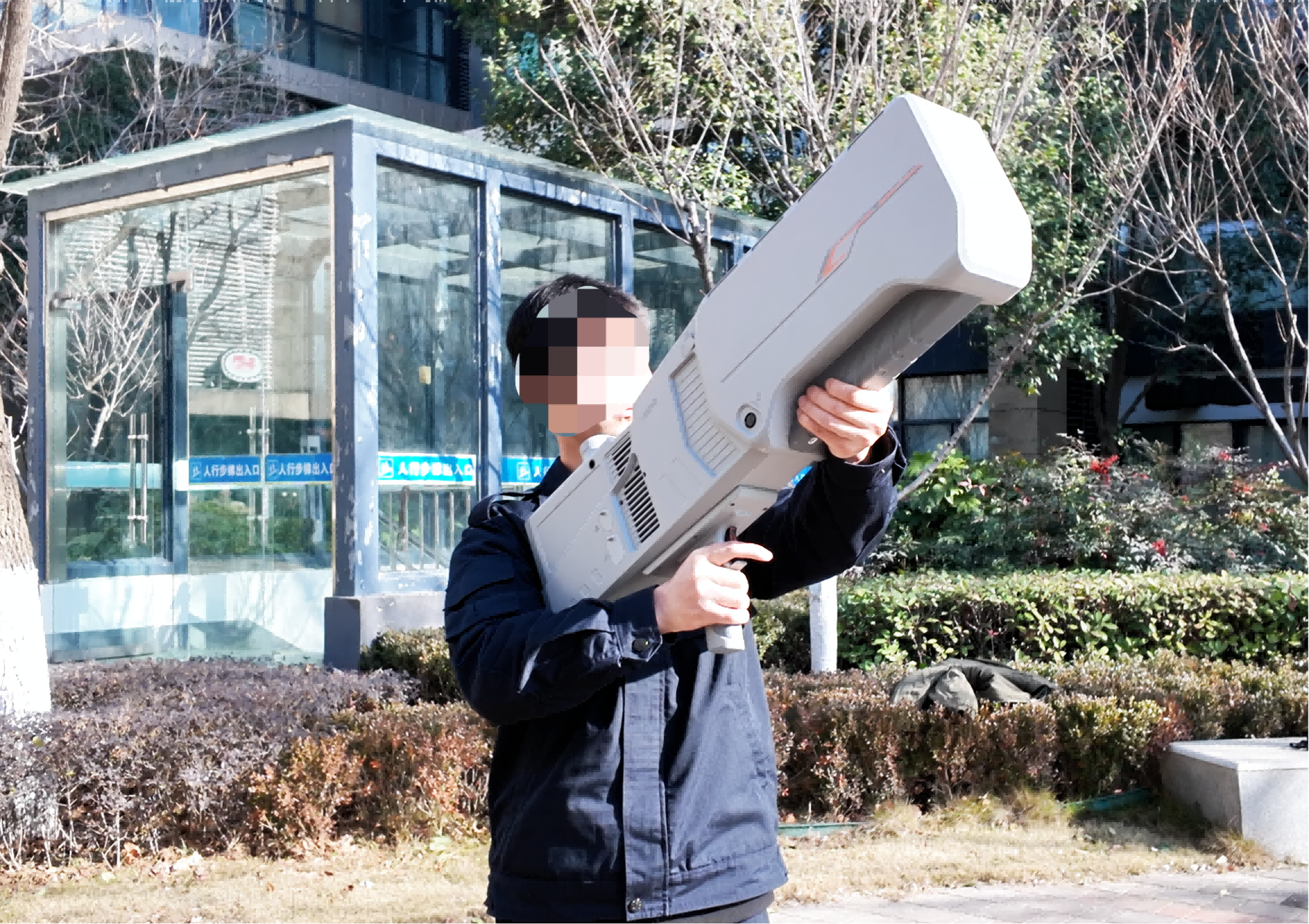

HDJS 3.0 combines powerful, long-range counter-drone capabilities with a lightweight, user-friendly design. The equipment forms a multi-layered defense system, providing detection, identification, and early warning, as well as direction-finding, positioning, jamming, and navigation spoofing. It enables unauthorized drones to be neutralized without disrupting the surrounding environment.
It delivers an efficient, comprehensive, and portable low-altitude defense solution that can be used extensively in aviation, energy facilities, large-scale events, correctional facilities, and others.
3、Product Features
High Integration: All-in-one system, integrates detection and early warning, direction finding and positioning, jamming and spoofing functions.
Precise Identification: Based on CRPC2.0, it can precisely identify different drones with the same brand, the same model, and the same frequency band.
High-performance Touch Screen: Adopts one 5.5-inch touchscreen, providing operators with a wider field of view and significantly enhancing operational convenience.
The screen is designed to be highly bright, ensuring that information is clearly displayed even under intense outdoor sunlight.
4、Indicator parameters
|
Detection Mode |
Passive detection |
|
|
Detection Bands |
400MHz~6GHz |
|
|
Detection Distance |
0~3km (Differences exist due to different environments and drone types) |
|
|
Direction Finding Bands |
2.4GHz, 5.8GHz |
|
|
Direction Finding Distance |
0~3km (Differences exist due to different environments and drone types) |
|
|
Direction Finding Accuracy |
≤10° (RMS) |
|
|
Jamming Bands (Customizable) |
433MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz |
|
|
Jamming Distance |
0~2km (Differences exist due to different environments and drone types) |
|
|
Jamming Bands/Power Output |
1st channel: 430MHz~440MHz |
40dBm |
|
2nd channel: 840MHz~930MHz |
45dBm |
|
|
3rd channel: 1170MHz~1280MHz |
40dBm |
|
|
4th channel: 1550MHz~1620MHz |
40dBm |
|
|
5th channel: 2400MHz~2485MHz |
47dBm |
|
|
6th channel: 5150MHz~5350MHz |
45dBm |
|
|
7th channel: 5725MHz~5850MHz |
47dBm |
|
|
Jamming Range |
Horizontal: >40°, Vertical: >25° |
|
|
Spoofing Signal |
GPS-L1, GLONASS-L1, BDS-B1 |
|
|
Spoofing Distance |
0~1km (Differences exist due to different environments and drone types) |
|
|
Alarm Mode |
Alarm Sound, Warning Light, Vibration |
|
|
Touch Screen |
Size: 5.5 inches Resolution: 1920 × 1080 Display: Digital Map, Target Location, Pilot Location, Settings, etc. |
|
|
Power Supply |
1. Built-in lithium battery can be replaced 28.8V/3000mAh 2. AC 110~240V, 50/60Hz, 3.3A |
|
|
Power Consumption |
≤500W (Maximum, Full-band Jamming) |
|
|
Continuous Runtime (Dual Batteries Mode) |
≥3h (Support battery replacement without shutting down) ≤1h (Single or Multiple Band Jamming) ≤20min (Full-band Jamming) |
|
|
Dimensions |
805mm × 120mm × 395mm (±5mm) |
|
|
Weight |
≤7kg (Battery included) |
|
|
Operating Temperature |
-20℃ to +45℃ |
|
|
IP Rating |
IP65 |
|
